Production Packers

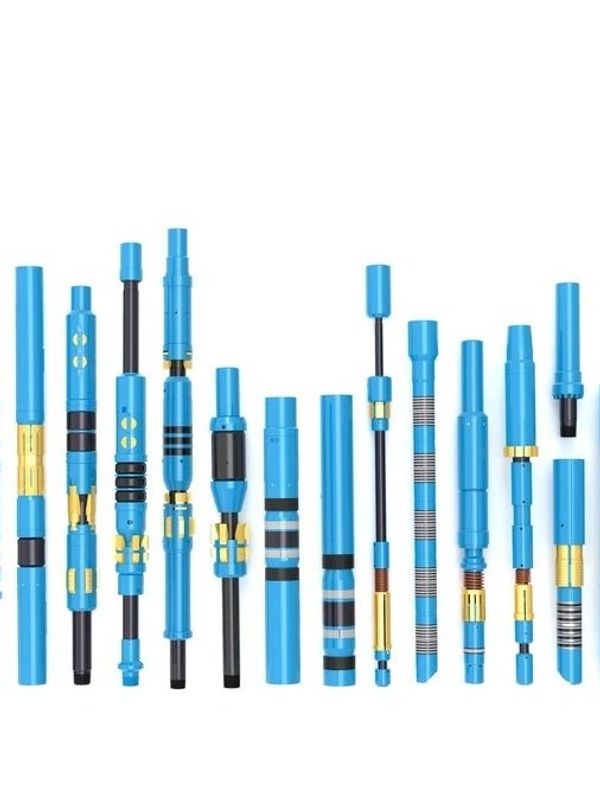

Packers and Completion Accessories
Our Packer system and related accessories have been technologically updated timely and have stood out in market with the most competitive prices. Our packers have been used by our national clients like:- ONGC, Oil India etc. While International Clients like:- NOV, AOT, Weatherford, CMS, Schlumberger Oilfield Services etc. Our major Packer system and accessories are listed below:
- HYDRAULIC SET PRODUCTION PACKER
- MECHANICAL SET RETRIEVABLE PACKER
- SEAL BORE PACKER (PERMANENT & RETRIEVABLE)
- PUMP OUT PLUG
- WIRELINE ENTRY GUIDE
- MILL OUT EXTENSION
- SEAL BORE EXTENSION
- BLAST JOINT
- FLOW COUPLING
- PUP JOINT
- SHEAR OUT SAFETY JOINT
- HYDRO TRIP PRESSURE SUB
Overview: Production Packers
HYDRAULIC SET PRODUCTION PACKER (GR-HPR-1)
- Hydraulically activated, hydrostatic-set, low-pressure, rig-pump-capable activation.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal/ H2S, CO2 well services requirements
HYDRAULIC SET RETRIEVABLE PACKER (GR-HPR-2)
- Hydraulic-set retrievable packer is designed for low- to medium-pressure applications. The short body length makes it excellent for low-angle deviations and horizontal applications. This compact, economical packer requires no mandrel movement. Its straight-pull release, pressure equalization, and shear-out features provide quick release and easy retrieval.
COMPRESSION SET RETRIEVABLE PACKER (GR-MPP 1,2 )
COMPRESSION SET RETRIEVABLE PACKER (GR-MPP 1,2 )
- Mechanical compression-set production packer intended for a broad range of production applications.
- Reliable Three-piece, Dual durometer sealing elements provide better pack off.
- Available in All API & premium thread connections
ASI-X MECHANICAL PACKER (GR-MPP-3)
COMPRESSION SET RETRIEVABLE PACKER (GR-MPP 1,2 )
- The ASI-X Packer is the most versatile of the mechanically set retrievable packers and may be used in any production application.
- The ASI-X Packer is suited for treating, testing, or injection applications, in pumping or flowing wells, either deep or shallow.
- The packer can be left in tension or compression, depending on well conditions and the required application.
GRADWELL RTTS PACKER (GR-MRSP)
GRADWELL RTTS PACKER (GR-MRSP)
- Used in all types of squeeze cementing, fracturing, and acidizing, with subsequent testing.
- The packing element system is the proven three-section type, heavier and more reliable than systems on packers.
- Hydraulically actuated hold down slips, carbide tipped for long, dependable service.
EXPANSION JOINT (GR-EJ)
GRADWELL RTTS PACKER (GR-MRSP)
- Can be supply with the Blank, Half Mule, Locater latch type, and Threaded type Bottom Sub.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal /H2S, CO2 well services requirement.
Overview: Production Packers
LOCK-SET PACKER (GR-MPP-4)
HYDRAULIC SET LARGE BORE PRODUCTION PACKER (GR-HPRL-4)
HYDRAULIC SET LARGE BORE PRODUCTION PACKER (GR-HPRL-4)
- Full Bore Double-Grip Retrievable Packer with an integral Unloader.
- Opposed, non-transferring dovetail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression, or neutral.
HYDRAULIC SET LARGE BORE PRODUCTION PACKER (GR-HPRL-4)
HYDRAULIC SET LARGE BORE PRODUCTION PACKER (GR-HPRL-4)
HYDRAULIC SET LARGE BORE PRODUCTION PACKER (GR-HPRL-4)
- No Tubing Manipulation required: The setting mechanism of this Packer is activated with pump pressure. The Packer can be set after the well is flanged up and the tubing is displaced.
- Setting Mechanism: The design of the setting mechanism ensures sustained pack-off force throughout life of the Packer. The tool does not depend on trapped hydraulic pressure, but mechanically locks initial setting forces into the packing elements.
