Flow Control equipment: Landing Nipple and Sliding Sleeves
Flow Control Equipment- Landing Nipples
Multiple types of profiles have been developed for Landing Nipples to fit in various Locks. It has been provided with Internal Locking grooves fitting up in various Flow control tools. Most of our FC equipment are available in all metallurgical and elastomers conforming to NACE MR 0175 or H2S or CO2 environments. Available in All API & Premium thread connections. The ”GR” Nipple is designed to be used in the heaviest weight, higher rated pressure tubing. The equipment are also readily usable for Gas Lift Operations. Some of our major flow control equipment are listed down:
- Selective X Nipple
- Non-Selective XN Nipple
- Selective R Nipple
- Non-Selective RN Nipple
- Top No-Go Nipple
- Lock Mandrels (Blanking Plugs)
- Equalizing Check Valves
- Running Tool
- Pulling Tool
- Lock Mandrel
- No-Go Landing Nipple

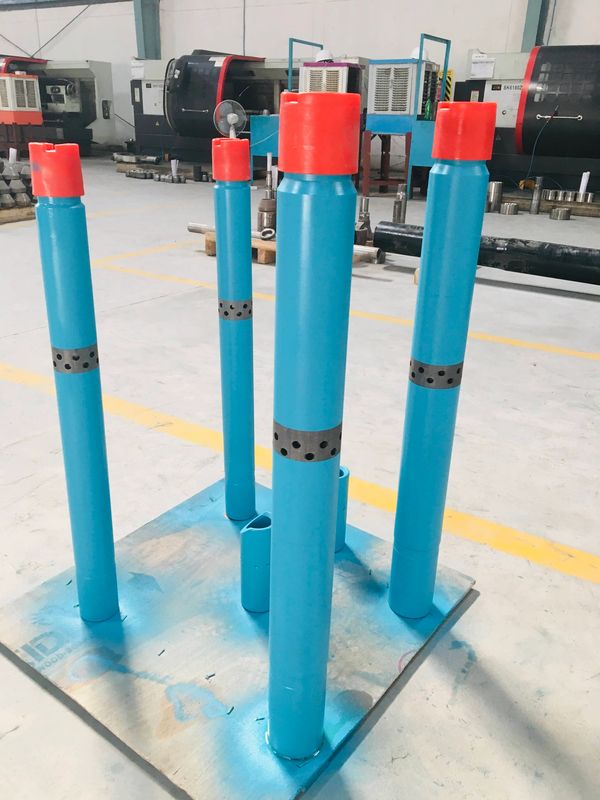

Sliding Sleeves
The Sliding Sleeve is a Down hole Tool normally screwed into the production tubing, allowing for communication between the tubing and the casing. It is used to selectively produce zones in a multi-zone completion, stimulate and test zones, displace tubing or casing once the wellhead is installed, kill the well by circulation and allows for the circulation of treatment chemicals or agents. The closing sleeve has replaceable, v type upper and lower seals to ensure maximum sealing integrity for extended periods of time down hole. Available in material conforming to NACE MR 0175 or H2S, CO2 well environment services requirements. Top and Bottom Sub having High Finish seal Bore ID to accommodate isolation sleeve and other sealing devices
Flow Control equipment: Landing Nipple and Sliding Sleeves
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
- A specially designed diffuser ring made of high-strength thermoplastic is critically spaced between the flow ports and the upper packing unit. This prevents damage to the upper packing unit during shifting by controlling the rush of fluid or gas and lessens the likelihood of tool string damage by providing for slow equalization of high differentials.
- Mill slots replace drill holes as flow ports on both the housing and the insert to allow more flow area, reduce erosion and allow higher torque and tensile strength through the sleeve.
LANDING NIPPLE XN PROFILE (GR-LNP-XN)
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
- Internal locking groove fits various other Flow Control tools.
- Selective locking devices allow more than 1 GX Landing Nipple of the same seal bore diameter to be used in the same tubing string.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal/H2S, CO2 well services requirements.
LANDING NIPPLE X PROFILE (GR-LNP-X)
NON-ELASTOMERIC SLIDING SLEEVE (GR-SSD)
LANDING NIPPLE RN PROFILE (GR-LNP-RN)
- Internal locking groove fits various other Flow Control tools.
- Selective locking devices allow more than 1 GXN Landing Nipple of the same seal bore diameter to be used in the same tubing string.
- Seal bore area packs off various Flow Control devices.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal/H2S, CO2 well services requirements.
LANDING NIPPLE RN PROFILE (GR-LNP-RN)
LANDING NIPPLE RN PROFILE (GR-LNP-RN)
LANDING NIPPLE RN PROFILE (GR-LNP-RN)
- Internal locking groove fits various other Flow Control tools.
- Selective locking devices allow more than 1 CR Landing Nipple of the same seal bore diameter to be used in the same tubing string.
- Seal bore area packs off various Flow Control devices.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal/H2S, CO2 well services requirement.
LANDING NIPPLE R PROFILE (GR-LNP-R)
LANDING NIPPLE RN PROFILE (GR-LNP-RN)
LANDING NIPPLE R PROFILE (GR-LNP-R)
- Internal locking groove fits various other Flow Control tools.
- Selective locking devices allow more than 1 CR Landing Nipple of the same seal bore diameter to be used in the same tubing string.
- Seal bore area packs off various Flow Control devices.
- Available in all metallurgical and Elastomers conforming to NACE MR 0175 or H2S, and suitable for standard normal/H2S, CO2 well services requirement.
